Freezer Compressor Diagnostic Tool
Is your freezer not cooling? Use this interactive tool to diagnose the problem based on your symptoms and find the correct solution.
Before you spend a fortune on a technician, you need to understand that the Freezer Compressor is the heart of the cooling system, acting as a pump that compresses and circulates refrigerant gas to remove heat from the interior. When it stops working, it is usually because a safety mechanism has tripped or a component has failed. If you can identify why it stopped, you can often get it running again with a few simple moves.
Quick Summary for Fast Fixing
- Hard Reset: Unplug the unit for 10-15 minutes to clear the control board memory.
- Temperature Check: Ensure the internal temp is set correctly; some units shut down if they overheat.
- Clean the Coils: Dusty condenser coils cause the compressor to overheat and trip its internal thermal protector.
- Listen for Clicks: A repetitive clicking sound usually means a failing start relay, not a software glitch.
- Safety First: Always disconnect power before touching any electrical components.
The 'Hard Reset' Method
If your freezer is acting glitchy-maybe the lights are on but the compressor is silent-the first thing to try is a hard power reset. This isn't a factory reset in the way you'd handle a smartphone, but it clears the Control Board is the electronic brain of the appliance that manages temperature sensors and power distribution to the compressor.
Start by unplugging the freezer from the wall outlet. If it's hard-wired, flip the circuit breaker in your electrical panel. Now, here is the part most people skip: wait. Don't just flip it back on after five seconds. Leave it unplugged for at least 15 minutes. This allows the capacitors to discharge fully and gives the compressor's internal thermal overload switch time to cool down. If the compressor tripped because it got too hot, it physically cannot restart until it reaches a safe temperature. When you plug it back in, listen for the hum of the motor. If it starts immediately, you've likely cleared a temporary electronic glitch.
Dealing with the Thermal Overload Protector
Inside the compressor housing is a small device called the Thermal Overload Protector is a safety switch that cuts power to the compressor motor if it exceeds a safe operating temperature to prevent a fire. When this trips, the compressor shuts off. You can't 'reset' this with a button; you have to solve the heat problem.

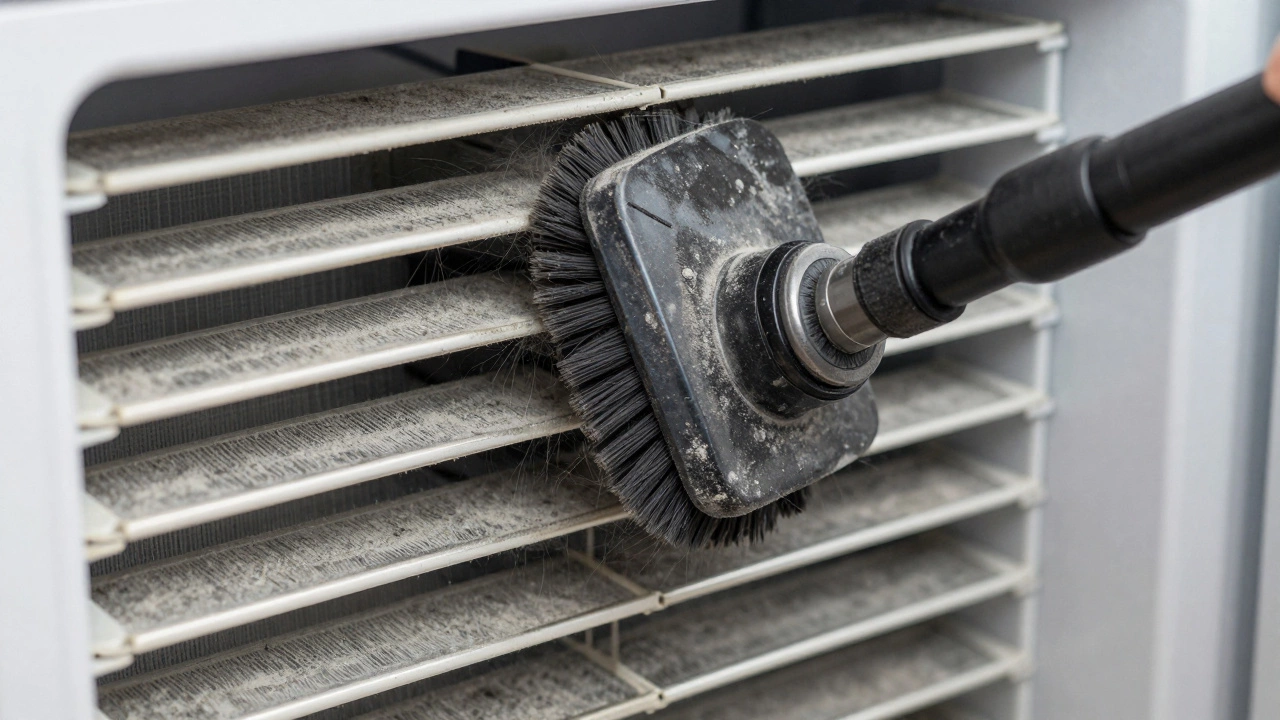

The most common reason for this is dirty Condenser Coils is the external tubes that release heat from the refrigerant into the surrounding air. If these are covered in pet hair, dust, or grease, the heat stays trapped. The compressor works harder and harder until it overheats and the protector snaps the circuit. To fix this, pull the freezer away from the wall and use a vacuum cleaner with a brush attachment or a coil brush to clear the grime. Once the coils are clean and the unit has had time to cool down during your hard reset, the compressor should restart on its own.
Identifying the Start Relay Failure
If you hear a distinct 'click' every few minutes, followed by silence, you aren't dealing with a software issue-you're dealing with a hardware failure. The Start Relay is a small device plugged into the side of the compressor that provides the initial electrical boost needed to start the motor.
When a start relay fails, it can't give the compressor the push it needs to start. The compressor tries to start, fails, and the thermal protector clicks off to prevent the motor from burning out. To test this, you can unplug the unit, remove the relay from the side of the compressor, and shake it. If it rattles like a box of broken glass, it's burnt out. Replacing a start relay is a cheap, 10-minute fix that avoids the need for a total compressor replacement, which can cost hundreds of pounds.
Component Comparison: Reset vs. Repair
| Symptom | Likely Cause | Action Required | Difficulty |
|---|---|---|---|
| Silent, no cooling, lights on | Control Board Glitch | Hard Power Reset | Very Easy |
| Clicking sound every 5 mins | Faulty Start Relay | Replace Relay | Moderate |
| Running hot, shuts off randomly | Dirty Condenser Coils | Vacuum/Clean Coils | Easy |
| Humming but not cooling | Refrigerant Leak | Professional Service | Expert |
The Role of the Thermostat and Sensors
Sometimes the compressor isn't broken; it just thinks it doesn't need to run. The Thermostat is the temperature-sensing switch that tells the compressor when to turn on and off based on the internal air temperature. If the thermostat is faulty or the sensor is blocked by a bag of frozen peas, the compressor will never receive the signal to start.
Check your temperature settings first. If you've accidentally bumped the dial to the lowest setting or 'off', the compressor won't run. If the settings are correct, try adjusting the temperature dial up and down rapidly. In some older mechanical models, this can 'wake up' a sticking thermostat. In modern digital units, check the display for any error codes. If you see a code like 'E1' or 'F2', refer to your manual; it usually points to a specific sensor that is preventing the compressor from engaging.
When to Stop and Call a Pro
There are a few scenarios where you simply cannot 'reset' your way out of the problem. If you've cleaned the coils, replaced the start relay, and performed a hard reset, but the compressor still won't start-or if it starts and immediately trips the breaker-you might have a grounded compressor. This is an internal electrical short in the motor windings.
Additionally, if the compressor is running constantly but the freezer isn't getting cold, you likely have a Refrigerant Leak is a hole in the sealed system where the cooling gas escapes, making it impossible for the compressor to move heat. Since the system is hermetically sealed, this requires specialized tools to find the leak and recharge the gas. Attempting to 'reset' a unit with a leak will only wear out the compressor faster, as it will run 24/7 trying to reach a temperature it can never achieve.
Can I reset a freezer compressor with a button?
No, almost no modern freezers have a dedicated 'reset' button for the compressor. The system is designed to reset automatically once power is cycled or once the internal thermal protector cools down. Your best bet is a hard reset by unplugging the unit for 15-30 minutes.
Why does my freezer keep clicking every few minutes?
This is usually the sound of the start relay failing or the thermal overload protector tripping. The compressor tries to start, draws too much current or gets too hot, and the safety switch clicks it off. This is often caused by a bad relay or extremely dirty condenser coils.
Will unplugging the freezer delete my settings?
In most cases, no. While some very high-end smart freezers might reset to default factory temperatures, most standard models will remember their settings or simply return to the physical position of the dial.
How long should I leave the freezer unplugged for a reset?
At least 15 minutes. This ensures that any stored electricity in the capacitors is gone and, more importantly, gives the compressor's thermal protector enough time to cool down so it can successfully restart.
Is it safe to replace the start relay myself?
Yes, as long as the unit is completely unplugged from the power source. The relay is a plug-and-play part located on the side of the compressor. Just make sure you buy the exact matching part number for your specific model.
Next Steps and Troubleshooting
If you've followed the steps above and your freezer is still warm, your path depends on what you observed during the process:
- If the compressor is humming but the air is warm: Check for frost buildup on the evaporator coils. You might need a manual defrost rather than a compressor reset.
- If the compressor is dead silent after a reset: Test the outlet with another lamp or device to ensure the circuit breaker hasn't tripped. If the outlet has power, the control board or thermostat is likely dead.
- If you smell burning plastic: Immediately unplug the unit and do not attempt a reset. This indicates a severe electrical failure that requires a professional technician.
